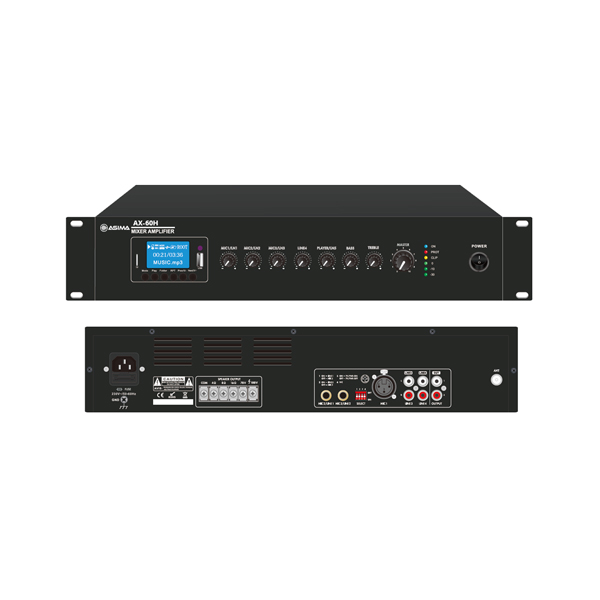

Model : Mixer Amplifier with USB/SD & FM & Bluetooth AX-60H
19” rack mount public address amplifier
Built-in medial player with USB/SD, FM/DAB+ & Bluetooth
Rate power output at 60W, 120W, 240W, 350W to 500W
Speaker output of 100V or 70V & 4-16Ω
3 x Mic/line inputs, 2 x RCA line inputs, and 1 x RCA line output
XLR input with switchable +48V phantom power
With short-circuit, clip, overload and high temp protection
230V AC power supply
Specification:
| Model | AX-60H |
| Description | Mixer Amplifier with USB/SD & FM & Bluetooth |
| Rated Power Output | 60W |
| Speaker Outputs | 100V or 70V & 4-16Ω |
| Input | MIC1-3: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA |
| Frequency Response | 60Hz-15kHz(±3dB) |
| S/N Ratio | Line ≥ 85dB, Mic≥ 72dB |
| Dimension | 484×335×88mm |
| Weight | 6.1kg |
