Compact mini size public address amplifier
Ideal for classroom sound system use
Built-in 100V/70V transformer technology
Tabletop amplifier with Mp3 player, FM radio & blue tooth
Rate power output at 30W, 60W to 120W.
Speaker output of 100V or 70V & 4Ohms-8 Ohms-16 Ohms
Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and blue tooth
LED indicators for power, clip, protect and signal
Mic1-3 and line 1-2 and telephone input. Mic1 of balanced XLR input with phantom power on rear panel. Mic2-3 microphone or line switchable unbalanced 6.3mm phone jack input. Line 1-2 input of RCA input and one RCA line output. Telephone input with VOX priority and MOH (Music on Hold).
Volume control for Mic1-3, line1-2, Mp3/FM, bass/treble and master
With short-circuit, clip, overload and high temp protection
AC 110-240V & 24V DC both operation system
Specification:

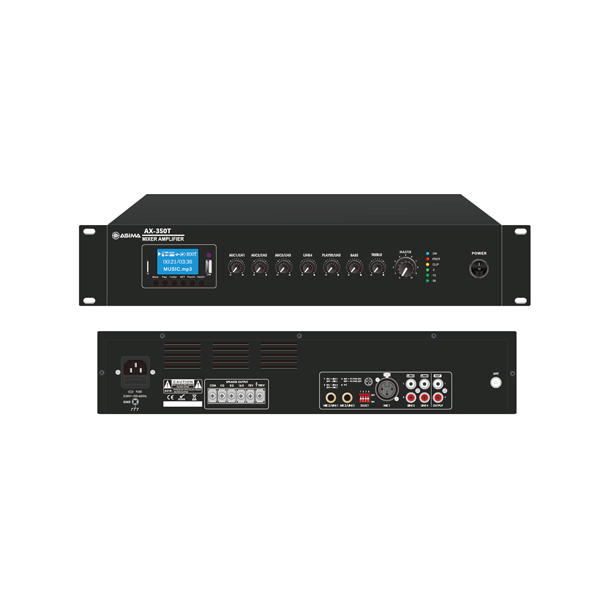

| Model | AX-350T |
| Description | PA Amplifier with USB/SD & FM & Blue Tooth |
| Rated Power Output | 350W |
| Speaker Outputs | 100V or 70V & 4Ohms-8 Ohms-16 Ohms |
| Input | MIC1-3: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA |
| Frequency Response | 60Hz-15kHz(±3dB) |
| S/N Ratio | Line ≥ 85dB, Mic≥ 72dB |
| Power Supply | AC110-240V & 24V DC /50-60Hz |
| Dimension | 320(W)×210(D)×90(H)mm |
| Weight | 11.9kg |
