Feature:
IP network amplifier with audio decoder.
IP audio streaming with decoder and amplifier.
Huge system capacity of 6,000 zones paging and multiple BGM system.
IP based public address system over LAN/WAN or Internet.
Minimum cable connection by using existing network framework.
Ideal for school, office, restaurant and fitness center multiple room IP PA sound system.
IP audio decoder built-in 2×15 Watt/8 Ohm Amplifier.
One microphone input and one line input and one line output.
Enable to broadcast Mp3 program or pre-recorded voice message from PC server to IP amplifier.
Remote volume control and program control from server room.
Timely broadcast ring bell or pre-recorded message to pre-set zones.
IP network remote microphone IP-600TM enables to talk to each zone or amplifier over network.
Simple system configuration by system server software IP-600SF, IP remote microphone IP-600TM & IP network amplifier to set
up IP audio system.
Specification:

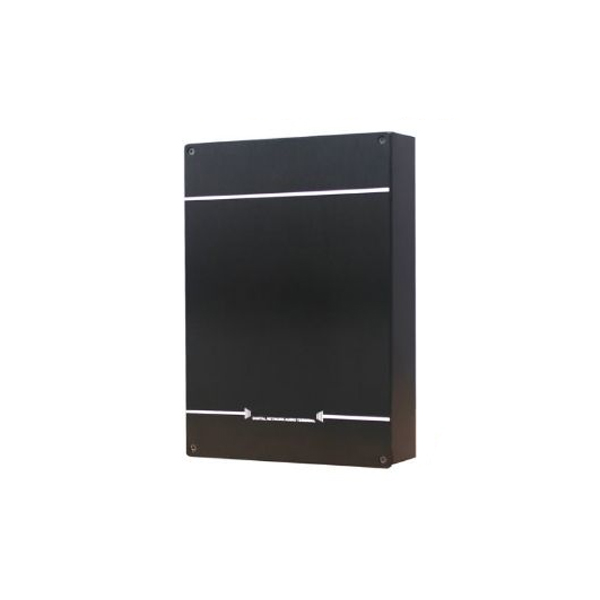

Model IP-604AMP
Description IP Audio Decoder with Amplifier
Rated Power Output 2×15 Watt/8 Ohm
Protocol Support TCP/IP, UDP, IGMP, ARP, UDP
Transmit Speed 10/100Mbps
Audio Format 16 digit stereo CD tone
Frequency Response 20Hz~16KHz
THD ≤0.3%
S/N Ratio ≥85dB
Connector One RJ45 port, one mic input and one line input and one line output
Speaker Output 8 Ohm
Working Temperature -5℃ to +40℃
Humidity 10% ~ 90%
Power Consumption 60W
Power Supply 12V-24V DC, supplied with AC to DC adapter
Dimensions 180x250x50mm
Weight 1.5kg
