Public address (PA) 6 zone commercial mixer power amplifier.
19” rack mount amplifier of 2U height.
Rated outputs of 60W, 120W, 240W, 350W to 500W.
6 zone speaker outputs of 100V.
Six zone speaker outputs with independent volume control.
Built-in MP3 player by USB & SD and FM tuner.
Four microphone inputs, Mic1(6.3mm) and Mic/Line input 2-4 (XLR).
Line 1-2 inputs on rear panel by RCA.
EMC input on rear panel with highest priority by RCA.
One amplifier capacity of 6 remote paging microphones DA-500RM up to 300 meters.
Microphone1 of VOX features of highest input priority except EMC input.
Volume control for Mic1-4 and line 1-2, bass & treble and zone volume control on front panel.
AC and DC Power, protection, clip six zone status indicators and output level meters.
Overload, short circuit and high temp protection.
AC 230V and DC24V operation system.
Specification:

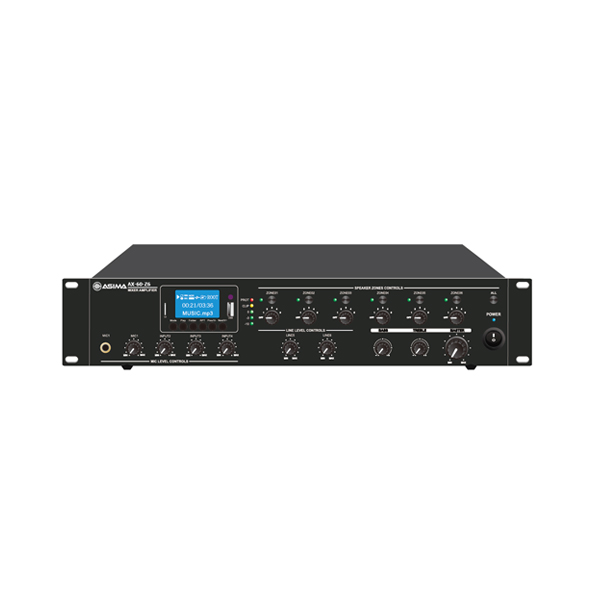

| Model | AX-60-Z6 |
| Description | PA 6 Zone Mixer Amplifier with Mp3 & Tuner |
| Rated Power Output | 60W RMS |
| Speaker Output | 100V |
| Input | Mic1-4: 2.5mV, Line1-2: 250mV; EMC: 250mV |
| Frequency Response | 80-16KHz |
| Power Supply | AC230V or AC110V, 50-60Hz |
| Dimension | 418(W)×318(D)×88(H)mm |
| Weight | 8.2Kg |
