Public address (PA) 3 zone mixer amplifier.
19” rack mount amplifier of 2U height.
Rated outputs of 120W, 240W, 350W to 500W.
3 zone speaker outputs of 100V.
One zone speaker outputs of 4-16Ohm-70V-100V.
3 zone speaker outputs with independent volume control.
Built-in MP3 player by USB & SD, FM tuner, blue tooth .
With IR remote control to switch source and volume control.
Three microphone inputs, Mic1(6.3mm) and Mic/Line input 2-3 (XLR).
Mic2-3 of balanced input with mic/line switch and 48V phantom power.
Aux 1-2 inputs on rear panel by RCA.
Mic1 of VOX features of highest input priority except EMC input.
With two pre-announcement chime and volume control.
Overload, short circuit and high temp protection.
Specification:

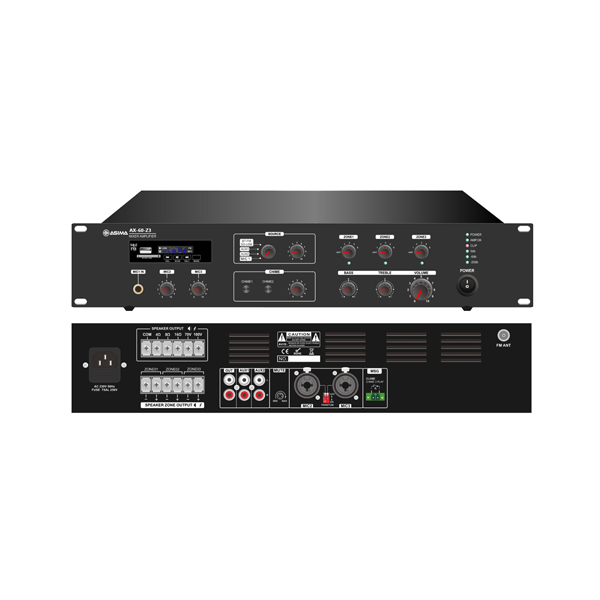

| Model | AX-60-Z3 |
| Description | 3 Zone Mixer Amplifier with Mp3 & Tuner & Bluetooth |
| Rated Power Output | 60W |
| Input | Mic1-3: 2.5mV, Aux1-2: 250mV |
| Frequency Response | 80-16KHz |
| S/N Ratio | >70dB |
| Power Supply | AC230V or AC110V, 50-60Hz |
| Dimension | 418(W)×318(D)×88(H)mm |
| Weight | 5.7kg |
