Feature:
- Touch screen remote microphone or call station.
- EN54-16 Certified remote microphone.
- Business & commercial zone live announcement use.
- Multiple zones, single zone & all zone paging.
- Each microphone of 120 zone capacity.
- Support 32 remote microphones of loop redundancy connection.
- The remote microphone unit is fully real time monitored.
- Support PPT and lock type two modes.
- Shielded CAT‑6 cable up to 600 meters.
- Power supply from ASM-500 controller.
Description:

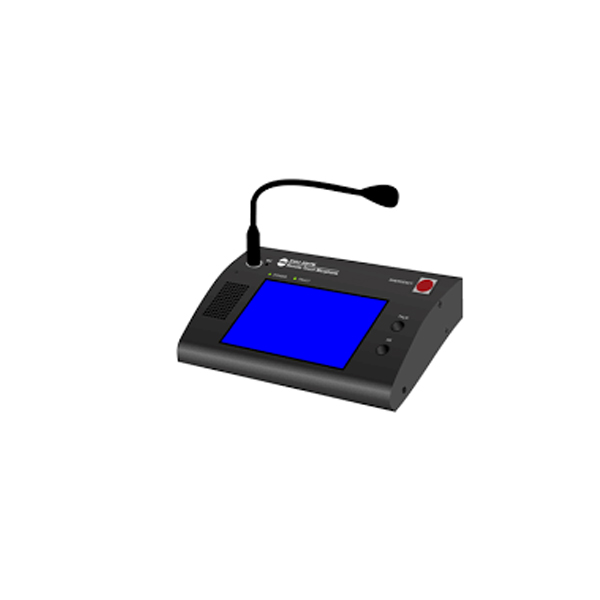

The ASM-500TM touch screen remote microphone or call station is EN54-16 certified and designed exclusively for ASM-500 public address & voice evacuation system. The remote microphone is used for business and commercial live announcement to selected zones or all zones. The remote microphone is designed of 120 zone with busy & working indicators. Up to 32 units of remote microphone could be connected to the voice evacuation system via standard, shielded CAT‑6 cable and RJ45 connectors in a redundancy loop up to 600 meters. The talk button maybe a PTT or lock type pre-set by the dipswitch on the rear of the microphone. Green LED indicates the microphone and zone active status. The remote microphone is 24VDC powered by the EVAC-500 controller. The voice evacuation system is strictly follow the Construction products Regulation（EU）No 305/2011: EN54-16:2008 Voice Alarm Control and Indicating Equipment.
Specifications:
| Model | ASM-500TM |
| Description | Touch Screen Remote Microphone |
| Power Consumption | 3W |
| Zone Capacity | 120 Zones |
| System Capacity | 32 Remote microphones |
| Line Inputs | 350mV, 10kΩ |
| Mic Input | 5mV, 600Ω |
| Frequency Response | 80Hz~16kHz |
| THD | ＜1% at RMS,1KHz |
| S/N Ratio | >70dB |
| Operating Temp | -20℃ to +70℃ |
| Power Supply | DC24V, ±20% |
| Humidity | <95% no condensation |
| Dimension | 256×149×52 mm |
| Weight | 1.5kg |
