Features:
- The conference system controller is specially designed for discussion system.
- 19” rack mount type audio conference system.
- Cost-effective and excellent voice restoration system.
- Ideal use in board room, meeting room, conference room in hotel, office and government.
- The capacity of system is 70 units delegate microphone and expandable to 500 units.
- With one balanced XLR line output.
- With three 8 PIN ports for delegate unit.
- Direct power supply to the delegate unit.
Specification

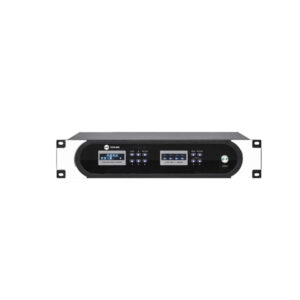

Model DG-8000
Description Conference System Controller
System Capacity 70 units delegate microphone
Connection Way Bus way, each microphone unit connected to the main line
Power Supply AC220V or 115V, 50-60Hz
Power Consumption 50W
THD <0.05%
S/N Ratio >75dB
Frequency Response 100Hz-18KHz
Input Two line inputs.
Output One line output by XLR type
Output Impedance 47KΩ
Communication Port 3 ports to connect with delegate units by 8 PIN connector
Dimension 480(W)×240(D)×44(H)mm
Weight 3.4kg
