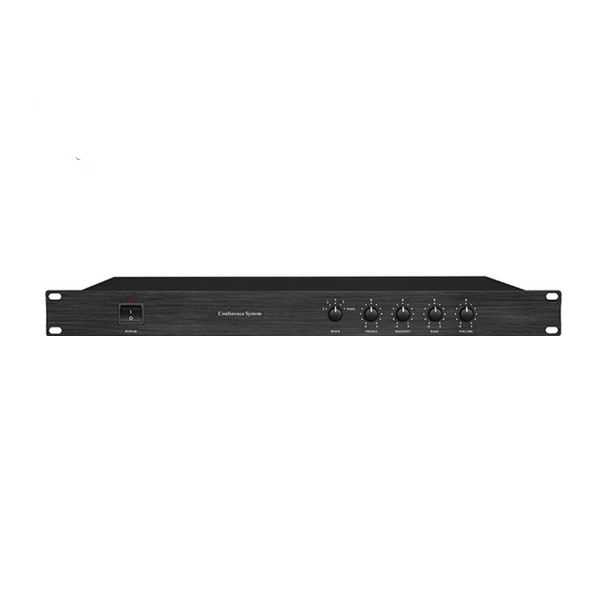

Conference System Controller DA-9000TT
Features:
- The Conference System Controller DA-9000TT is a robust and versatile central control unit designed for seamless management in conference environments.
- The conference system controller is specially designed for discussion system.
- 19” rack mount type audio conference system.
- Provides a stable power supply of 36V for both delegate and chairman microphones, ensuring consistent performance.
- Compatible with both AC220V and 115V power inputs, operating at 50-60Hz, ensuring adaptability to various power sources.
- Cost-effective and excellent voice restoration system.
- Ideal use in board room, meeting room, conference room in hotel, office and government.
- The capacity of system is 120 units delegate microphone and expandable to 246 units.
- Boasts high-quality audio with Total Harmonic Distortion (THD) less than 0.05% and a Signal-to-Noise Ratio (S/N ratio) exceeding 75dB, ensuring clear and crisp sound reproduction.
- Equipped with two-line inputs and provides a single-line output via XLR type connectors, allowing for versatile connectivity.
- With three 8 PIN ports for delegate unit.
- Direct power supply to the delegate unit.
Specification:
- Model: DA-9000TT
- Connects to a system of 120 delegate units, expandable up to 246 units
- Each delegate unit is connected through the main line
- Power supply for delegate and chairman microphones: 36V
- Power Supply: AC220V or 115V, 50-60Hz
- Power consumption: 80W
- THD <0.05%
- S/N ratio > 75dB
- Frequency response: 20Hz-20KHz
- Operating temperature: 0°C to +45°C
- Input: Two-line inputs. Output: One-line output via XLR type
- Output impedance: 47KΩ
- Communication Port 3 ports to connect with delegate units by 8 PIN connector
- Dimensions: 480 (W) × 240 (D) × 44 (H) mm
- Weight: 3.4kg
