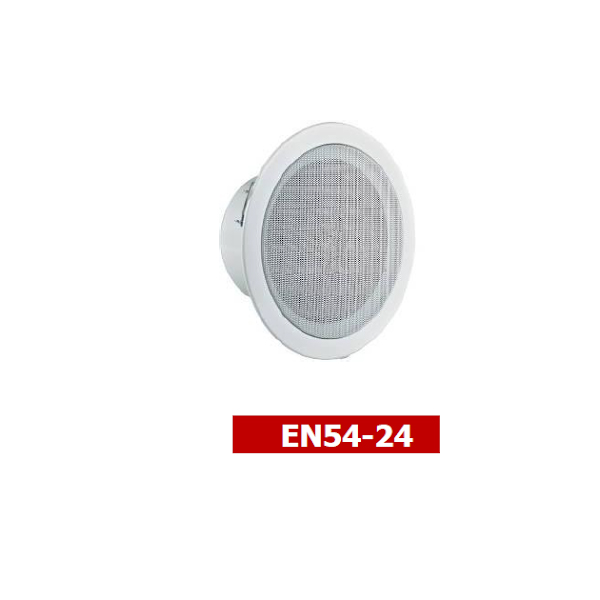

Features:
Compliant with the EN54-24 standards fireproof ceiling speaker
Built-in 100v/70v transformer for PA & VA system
In-ceiling fast installation type loudspeaker
5” full range speaker unit
Power taps 1.5W/3W/6W @100V
With metal fire dome for fireproof applications
Aluminum grille, metal baffle and fire dome
Paint in white color
Fireproof version design of ceramic terminal, thermal fuse, fire dome and fire-resistant cable
Fast installation by its three spring clips
Specifications:
| Model | FS-56C |
| Power Taps @100V | 6W/3W/1.5W |
| SPL (Rated W/1M), Peak | 98.5dB |
| Frequency Response | 110-14.5KHz (-10dB) |
| Finish | Baffle & Grille: Steel, White; Cover: Steel, white |
| Speaker Driver | 5″ x 1 full range paper cone |
| Dispersion -6dB, 500Hz | h = 180°, v = 180° |
| Dispersion -6dB, 1KHz | h = 160°, v = 160° |
| Dispersion -6dB, 2KHz | h = 130°, v = 130° |
| Dispersion -6dB, 4KHz | h = 90°, v = 90° |
| Cutout Size | 175mm |
| Dimensions | 200 x 105mm |
| Weight | 0.9Kg |
| Mounting | Spring-clip |
