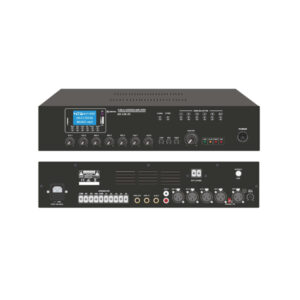

Tabletop 5 zone mixer amplifier with Mp3 player, FM radio & blue tooth
Rate power output at 60W, 120W, 240W, 350W, 500W& 650W
5 zone speaker outputs 100V & single zone speaker output of 100V or 70V & 4 Ohm-8 Ohm-16 Ohm
Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and blue tooth
EXT Chime for closed trigger input to activate the 4 tone chime and siren
Mic1 priority &mute level attenuator
Phanton power for Mic1 & Mic 2
7 Inputs includes Mic1-5 XLR inputs and Aux 1-2 inputs
Amp input and Pre output for external amplifier link
EQ of low, middle, high and master tone control
Complete amplifier protection includes short-circuit, clip, overload and high temp
Specification:
| Model | AX-60-Z5 |
| Description | PA 5 Zone Mixer Amplifier with Mp3 & Tuner |
| Rated Power Output | 60W RMS |
| Speaker Output | 100V |
| Input | Mic1-4: 2.5mV, Line1-2: 250mV; EMC: 250mV |
| Frequency Response | 80-16KHz |
| Power Supply | AC230V or AC110V, 50-60Hz |
| Dimension | 484×350×88mm |
| Weight | 7.0kg |
