Feature:
- Compliant with the EN54-24 standards fireproof ceiling speaker
- Built-in 100v/70v transformer for PA & VA system
- 100V power taps 20-10-5-2.5W & 8Ω
- 100V transformer and 8Ω both applications
- 5.25″ woofer and 1” Mylar teeter two way speaker system
- ABS enclosure, metal grille with fire dome in white
- Fireproof phoenix terminal, thermal fuse, fire dome and fire-resistant cable
- Flush mount in-ceiling quick and secure installation
Specification:

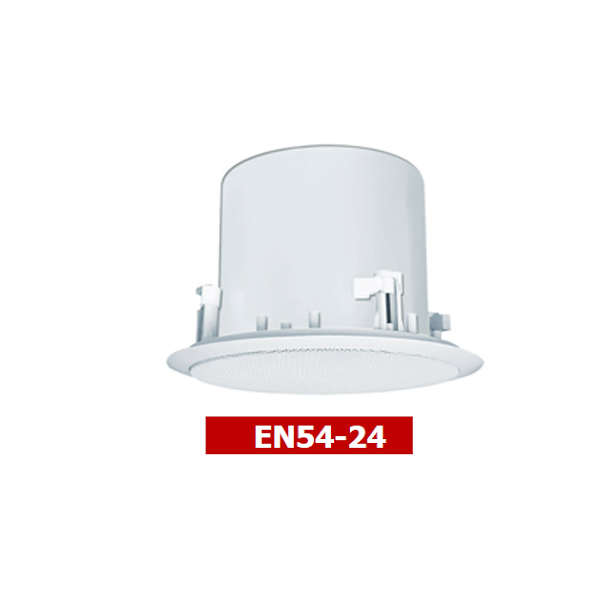

| Model | FS-520K |
| Description | EN54-24 Ceiling Speaker |
| 100V Power Taps | 20-10-5-2.5W & 8Ω |
| Frequency Response | 100-20KHz |
| SPL(@1W/m) | 86±3dB |
| Speaker Unit | 5.25″ woofer and 1” Mylar teeter two way |
| Cutout Size | Ø 170mm |
| Dimension | Ø 203×145mm |
| Material | ABS enclosure, metal grille with fire dome in white |
| Weight | 1.7kg |
